Description
425 HP

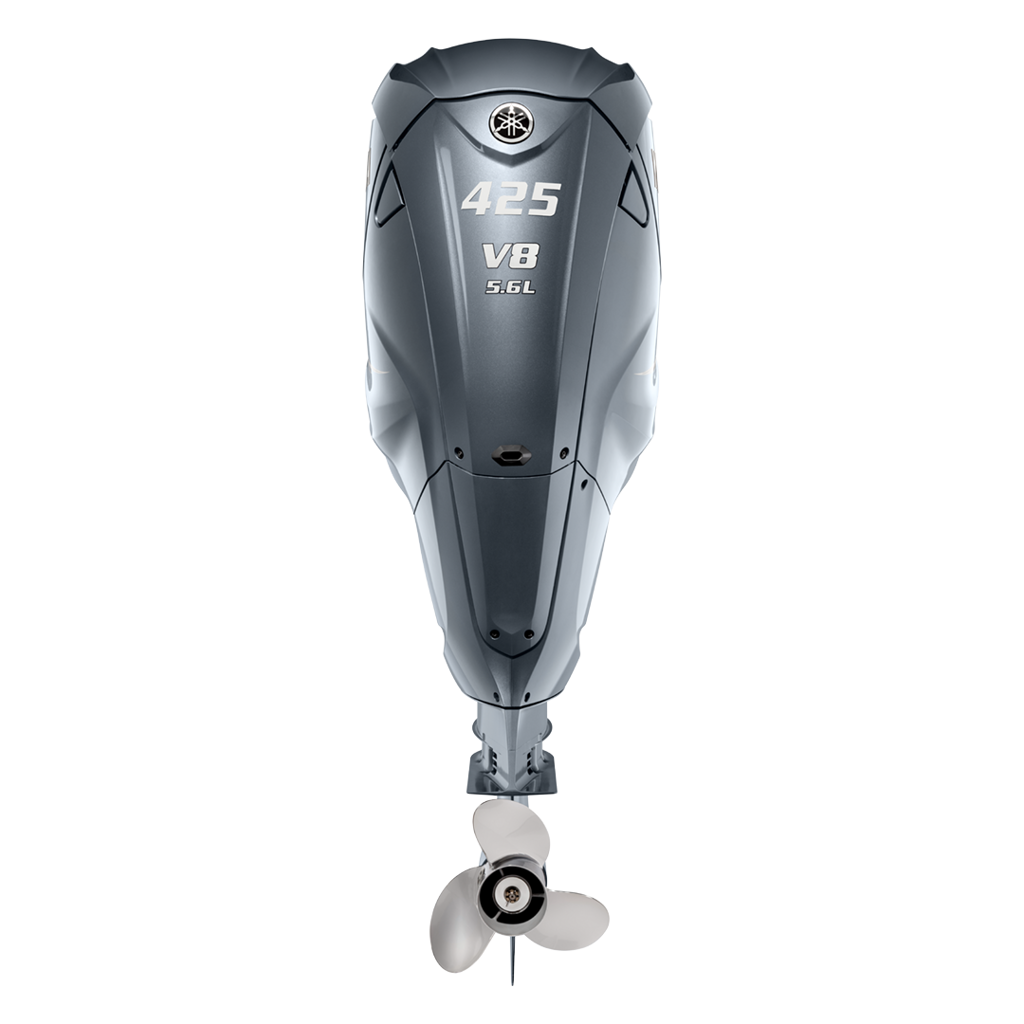

The XTO Offshore® 425 is the result of years of collaboration with top boat designers and has been built from the ground up to provide the ultimate in power and efficiency offshore. With impressive stats such as 12.2:1 compression ratio for impressive fuel economy and power, industry firsts such as an electric steering system and engineering touches such as iridium spark plugs and quad thermostats, it's purpose-built for extreme power, durability, control and reliability.
- Phase Angle Control Charging System an award-winning industry first
- Available in signature Yamaha gray or new pearlescent white
- 425 hp on less-expensive 89-octane gasoline
- Impressive 5-year Limited Warranty, for pleasure use
425 HP
| Weight † | 432 kg (952 lbs) / 443 kg (977 lbs) / 453 kg (999 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 - 6000 RPM |
| Fuel Induction System | Direct Injection / Up to 2900 PSI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | V8 / DOHC / 32 valves / 4 Valves per Cylinder |
| Displacement | 5.6L |
| Bore x Stroke | 96 x 96 mm (3.78 x 3.78 in) |
| Prop Shaft Horsepower | 425hp at 5500 RPM |
| Alternator Output at W.O.T. | 100 Amp Gross, Max |
| Compression Ratio | 12.2:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller (Except in Reverse Under 2500 RPM) |
| Intake | 32 |
| Ignition | TCI Microcomputer |
| Spark Plug | ILMAR7E-9 / Iridium |
| Starting System | Electric w/ PTT |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 7.8L / 8.2 Quarts | 7.5L / 7.9 Quarts |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | (25/14) 1.79 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 25" - 30" - 35" |
| Degree of Tilt | -4° through +73° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 28.5" |
| Steering | Integrated, Electric Actuation |
| Steering Angle (maximum) | 31° from center, either direction |
| Warranty | Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial |
425 HP
The XTO Offshore® 425 is compatible with a range of controls, gauges and props to suit your preference for performance, control and the display of data. Explore compatible components below and contact your dealer for rigging expertise.
Compatible Controls
Helm Master® EX
Digital Controls
Mechanical Controls
N/A
Multi-Function Tiller Handle
N/A
Compatible Gauges
CL5 Touchscreen Display
Digital and Analog Gauges
Enter your details. Find the right prop. Easily zero-in on the best propeller options based on your type of craft, horsepower and performance goals with this smart, online tool.
