Description
225 HP

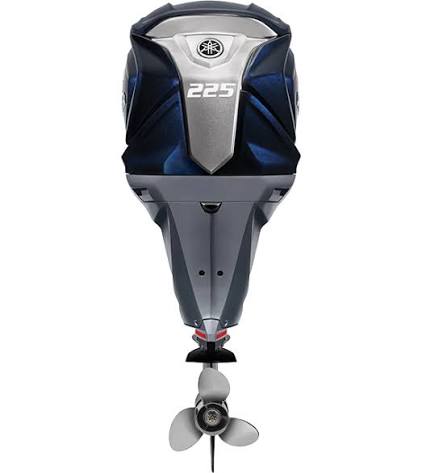

The V6 V MAX SHO 225 has all the tools in the tackle box to compete, including instant hole shot, exhilarating top speed and 40 percent more charging power than previous designs.
- Alternator output: up to 70 gross amps
- Super High Output 60-degree 4.2-liter V6 Design
- Minimum 89 Octane
- 20” shaft only
225 HP
| Weight † | 240 kg (529 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ∼ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | V6 |
| Displacement | 4.2L |
| Bore x Stroke | 96 x 96mm (3.78 x 3.78 in) |
| Prop Shaft Horsepower | 225hp at 5500 rpm |
| Alternator Output at W.O.T. | 70 Amp |
| Compression Ratio | 10.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 24 |
| Ignition | TCI Microcomputer |
| Spark Plug | LFR6A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 6.7L / 6.4L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 1.75:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20” |
| Degree of Tilt | 66° |
| Degree of Trim | −4° through +16° |
| Mounting Centers | N/A |
| Steering Angle (maximum) | 35° from center, either direction |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
225 HP
The V6 V MAX SHO 225 is compatible with mechanical controls, and a range of gauges and props to suit your preference for performance, control and the display of data. Explore compatible components below and contact your dealer for rigging expertise.
Compatible Controls
Helm Master® EX
N/A
Command Link Plus Digital Controls
N/A
Mechanical Controls
Multi-Function Tiller Handle
N/A
Compatible Gauges
Command Link Plus Display
N/A
Command Link and Analog Gauges
Enter your details. Find the right prop. Easily zero-in on the best propeller options based on your type of craft, horsepower and performance goals with this smart, online tool.
