Description
115 HP

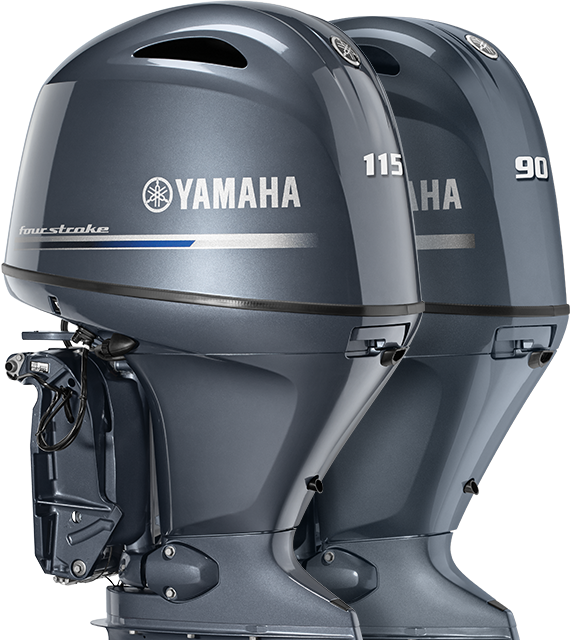

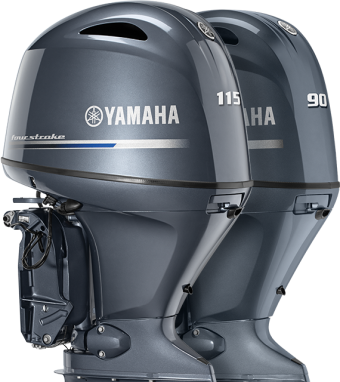

Our 1.8-liter Midrange F115 features a double overhead camshaft with four valves per cylinder. This increases volumetric efficiency and gives the F115 a competitive power to weight.
- Only 377 pounds
- Available in 20” or 25” shafts
- Powerful 35-amp alternator
- Optional Variable Trolling RPM via the Command Link® tachometer
115 HP
| Weight † | 171 kg (377 lbs) — 175 kg (386 lbs) |
|---|---|
| Full Throttle RPM Range | 5300 ∼ 6300 |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 1.8L |
| Bore x Stroke | 81 x 88.9mm (3.19 x 3.5 in) |
| Prop Shaft Horsepower | 115hp at 5500 rpm |
| Alternator Output at W.O.T. | 35 Amp |
| Compression Ratio | 10.0:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LKR6E |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 3.2/3.0L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.15:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20” — 25” |
| Degree of Tilt | 70° |
| Degree of Trim | −4° through +16° |
| Mounting Centers | 26” |
| Steering Angle (maximum) | 35° from center, either direction |
| Warranty | Limited 3-Year Pleasure Boat — 1 Year Limited Commercial |
115 HP
The 1.8-liter Midrange F115 is compatible with tiller and mechanical controls and a range of gauges and props to suit your preference for performance, control and the display of data. Explore compatible components below and contact your dealer for rigging expertise.
Compatible Controls
Helm Master® EX
N/A
Command Link Plus Digital Controls
N/A
Mechanical Controls
Multi-Function Tiller Handle
Compatible Gauges
Command Link Plus Display
N/A
Command Link and Analog Gauges
Enter your details. Find the right prop. Easily zero-in on the best propeller options based on your type of craft, horsepower and performance goals with this smart, online tool.
